Low Temperature Dta Differential Thermal Analyzer With Touch Screen

Name: Low Temperature Dta Differential Thermal Analyzer With Touch Screen
Brand: JINHAIHU
Price: 1 USD

Brand Name : JINHAIHU

Model Number : DSC-ZS5

Certification : ISO9001

Place of Origin : BEIJING, CHINA

MOQ : 1 set

Supply Ability : 20 sets per month

Delivery Time : 10~15 work days

Packaging Details : Carton

Product name : Low temperature differential thermal analyzer

Temperature resolution : 0.01 ℃

Heating rate : 0.1～40℃/min

Cooling rate : 0.1～20℃/min

DSC range : 0 ~ + 500 mw

DSC resolution : 0.01 mW

DSC sensitivity : 0.01 mW

Temperature control mode : Heating, cooling, constant temperature

Contact Now

Low temperature differential thermal analyzer

Summary:

The DSC is a touch screen type, specially testing polymer material oxidation induction period test, customer one-key operation, software automatic operation.

Conforming the following standards:

GB/T 19466.2- 2009/ISO 11357-2:1999

GB/T 19466.3- 2009/ISO 11357-3:1999

GB/T 19466.6- 2009/ISO 11357-6:1999

Features:

Industrial level widescreen touch structure is rich in information, including setting temperature, sample temperature, oxygen flow, nitrogen flow, differential thermal signal, various switch states, etc.
USB communication interface, strong universality, reliable communication, support self-restoring connection function.
The furnace structure is compact, and the rate of rising and cooling is adjustable.
The installation process is improved, and the mechanical fixation method is adopted to completely avoid the contamination of the internal colloidal of the furnace to the differential heat signal.
The furnace is heated by electric heating wire, and the furnace is cooled by circulating cooling water (refrigerated by compressor)., compact structure and small size.
The double temperature probe ensures the high repeatability of the sample temperature measurement, and adopts the special temperature control technology to control the temperature of the furnace wall to set the temperature of the sample.
The gas flow meter automatically switches between two channels of gas, with fast switching speed and short stable time.
Standard sample is provided for easy adjustment of temperature coefficient and enthalpy value coefficient.
Software support each resolution screen, automatically adjust the computer screen size curve display mode. Support laptop, desktop; Support Win2000, XP, VISTA, WIN7, WIN8, WIN10 and other operating systems.
Support user edit device operation mode according to actual needs to achieve full automation of measurement steps. The software provides dozens of instructions, and users can flexibly combine and save each instruction according to their own measurement steps. Complex operations are reduced to one-click operations.
Fully closed support structure design, prevent items falling into the furnace body, pollution of the furnace body, reduce the maintenance rate

Parameters:

Temperature range	0℃~500℃
Temperature resolution	0.01℃
Heating rate	0.1～40℃/min
Cooling rate	0.1～20℃/min
Calorimetric resolution	100%.
Constant temperature	5℃~500℃
Duration of constant temperature	The duration is recommended to be less than 24 hours.
Temperature control mode	Heating, cooling, constant temperature
DSC range	0～±500mW
DSC resolution	0.01mW
DSC sensitivity	0.01mW
Working power	AC 220V 50Hz 300W or other
Atmosphere control gas	Two-channel gas control by automatic controlled (e.g. nitrogen and oxygen)
Gas flow	0-200mL/min
Gas pressure	0.2MPa
Gas flow accuracy	0.2mL/min
Crucible	Aluminium crucible Φ6.63mm (Diameter High)
Calibration standard	with standard material (indium, tin, zinc)
Data interface	Standard USB interface
Display mode	7-inch touch screen
Output mode	computer and printer

Configuration list:

DSC machine	1 set
Aluminium crucibles	300 pieces
Power cords and USB cable	Each one
CD (contains software and operations video)	One
Soft-key	One
Oxygen airway and nitrogen airway	Each 5m
Operation manual	One
Standard sample(contains Indium, tin, zinc)	Each one
Tweezer and medicine spoon	Each one
Custom pressure reducing valve joint and quick joint	Two
Fused glass fuses	Four
External circulation thermostat sink	One
Water pipe	One

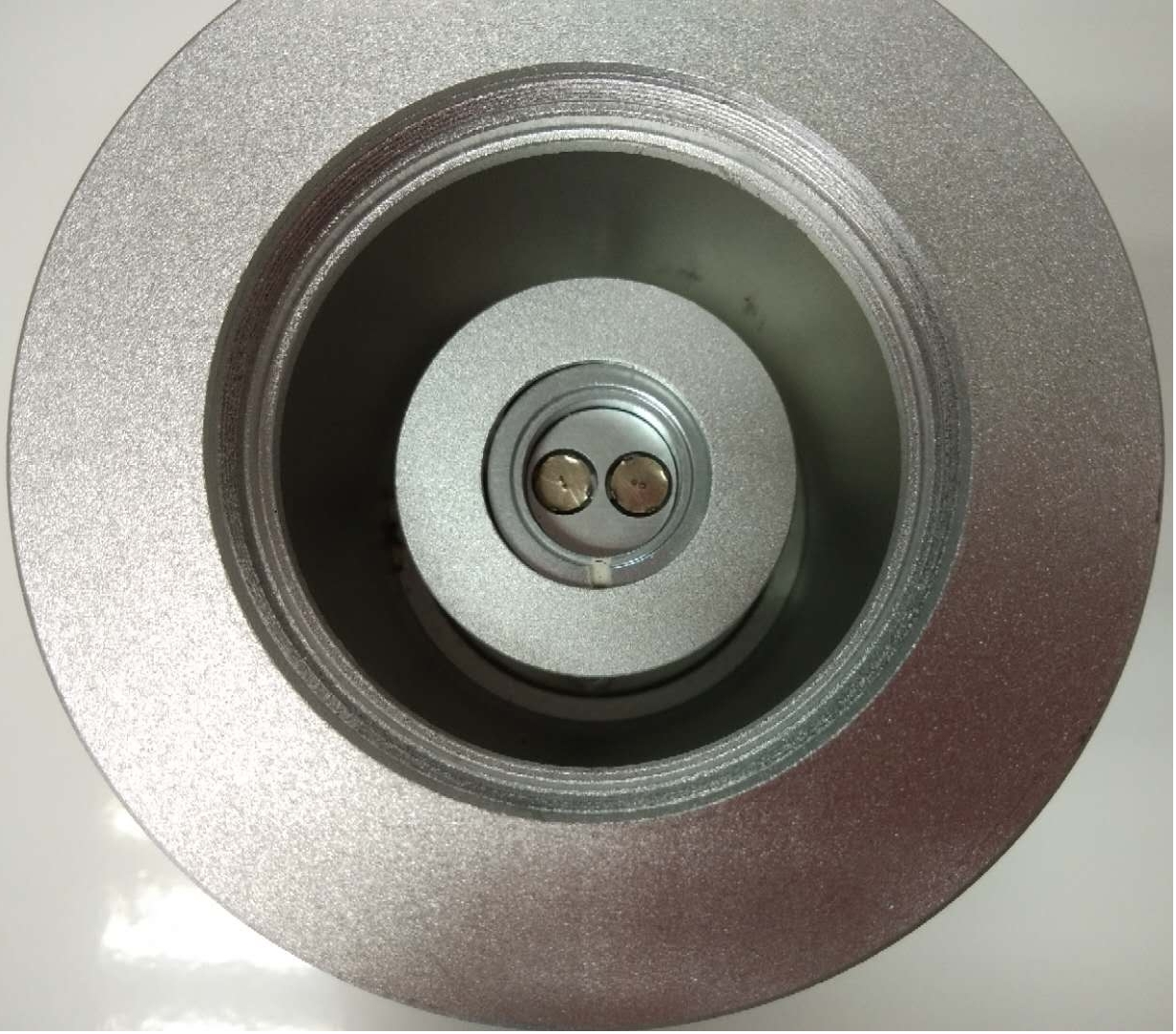

Furnace bracket:

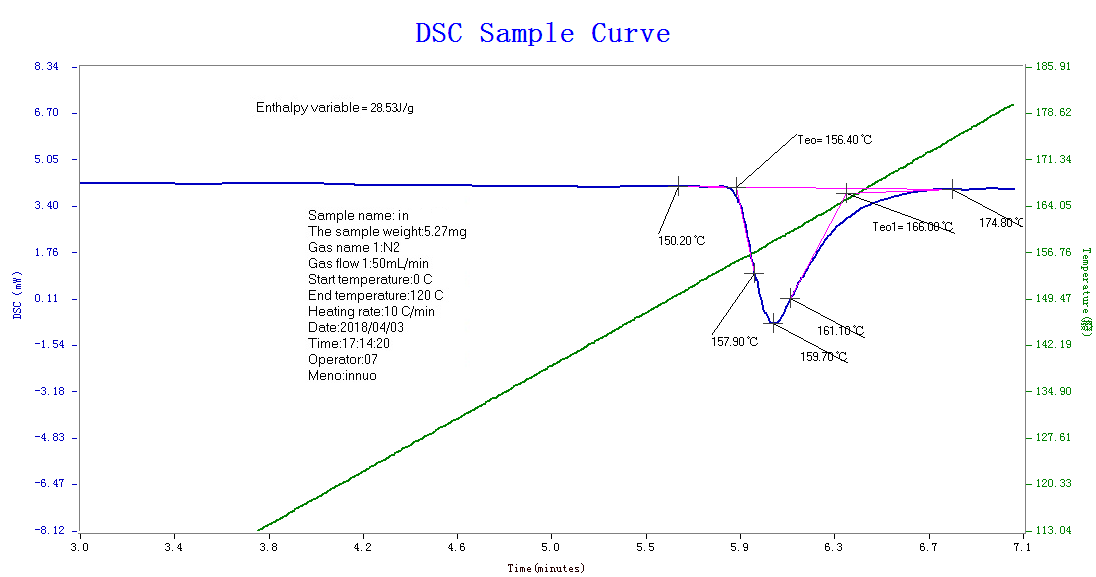

Software screenshots:
